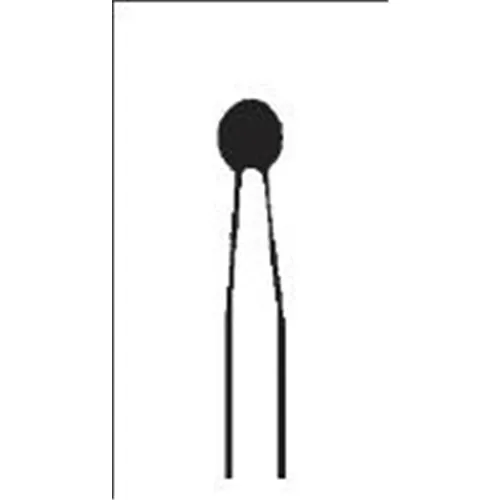

Diamond-impregnated precision rotary instruments for cavity and crown preparation

Hybrid Points are the result of a development process combining both diamond and abrasive technologies.
The special coating technology guarantees
a high cutting performance with a very low contact pressure.

Indication:

preparations, contouring

In the dental practice:
cavity and crown preparations

Field of use:
Suitable for the following materials:
tooth enamel, porcelain

Benefits:

- exact, uniform distribution of the diamond particles.
- sturdy stainless shank.
- vibration-free grinding.
- precision running.
- consistent grinding performance.
- high grinding performance with a low contact pressure, resulting in low heat generation.
- long lasting.
- 12 different shapes and sizes.

Material properties:

Working end:
Working end uniformly coated with natural diamond particles of standard grit size

Shapes and sizes:
9 shapes for a wide range of preparation steps

Shank:
stainless steel shank
Working end and shank as one piece and exactly centred

Shank shapes:
FG = Turbine

Recommended speed range
300,000 - 450,000 min-1
The recommended speed range varies according to the type of shank and the shape and size of the working end.
The maximum permitted speed should not be exceeded!

Note
Hybrid Points can be cleaned in an ultrasonic bath and sterilised in an autoclave
