Omschrijving
- Artikelnr.: 162301
- Artikelnr.: 162301
- Merk: SHOFU
- Fabrikant nr.: 0835-1
- Categorie: Instrumentarium / Boren en fraisen / Diamant boren

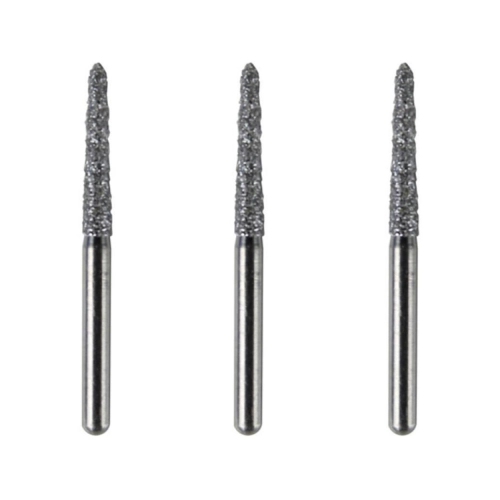

Precision Diamonds
The computerised production process guarantees an uniform distribution of a precise amount of natural diamond particles.
The diamond abrasives are available in the three different grit sizes superfine, fine, regular, coarse and supercoarse.
Six different shapes are available for minimally invasive therapy. Compared with conventional diamonds the working parts are small; the narrow and slender instrument neck allows an unimpeded view of the surface that is to be prepared.
Indication
In the dental practice
for cavity and crown preparations and for adjusting direct restorative materials
In the dental laboratory
e. g. fine adjustments to full anatomically designed occlusal surfaces on porcelain crowns, inlays, onlays and approximal areas
Range of use
Suitable for the following materials:
tooth enamel, porcelain, composites, filling materials such as GIC, cements
Benefits
exact, uniform distribution of the diamond particles
shank and working end are produced from a one-piece blank
long lasting
precision running
vibration-free action
Material properties
Working end
uniformly coated with natural diamond particles
5 grit sizes: supercoarse, coarse, standard, fine, superfine
Shapes and sizes
77 shapes for a wide range of preparations and procedures as well as 6 shapes for minimally invasive therapy
supercoarse grit (X, black banded): 10
coarse grit (C, green-banded shank): 6
regular (plain shank): 77
fine (F, red-banded shank): 11
superfine (V, yellow-banded shank): 19
Shank
Stainless steel shank
Working end and shank as one piece and exactly centered
Shank shapes
FG = Turbine
Recommended speed range
120,000 - 450,000 min-1
The recommended speed range varies according to the type of shank and the shape and size of the working end.
The maximum permitted speed should not be exceeded!
Note
Robot Points FG can be cleaned in an ultrasonic bath and sterilised in an autoclave.
